LAB TESTING SERVICES


We offer over 10 years of experience, providing a broad range of services to clients around the globe.

Our global network of laboratories and testing facilities, staffed by knowledgeable and experienced personnel, help you to reduce risks, shorten time to market and demonstrate the quality and safety of materials, components or products.

Full scale structure testing is our main forte. We can test all type of structures such as wall, slab, scaffolding, beam, etc. Other than that, we offers wide range of construction material testing services .

Some of our facilities are :

  • Reaction floor (15m x 26m)

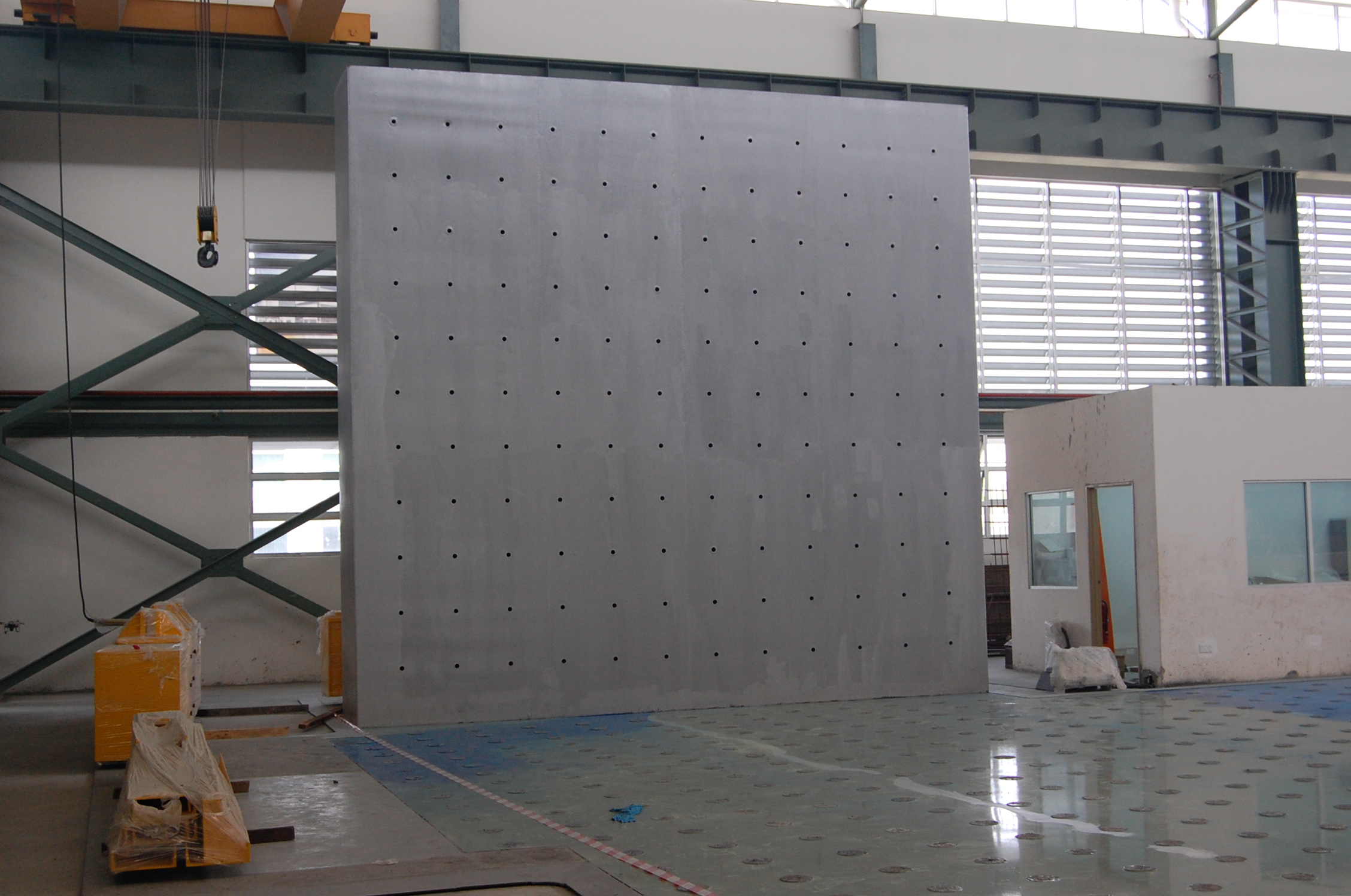

  • Reaction wall (6m x 6m)

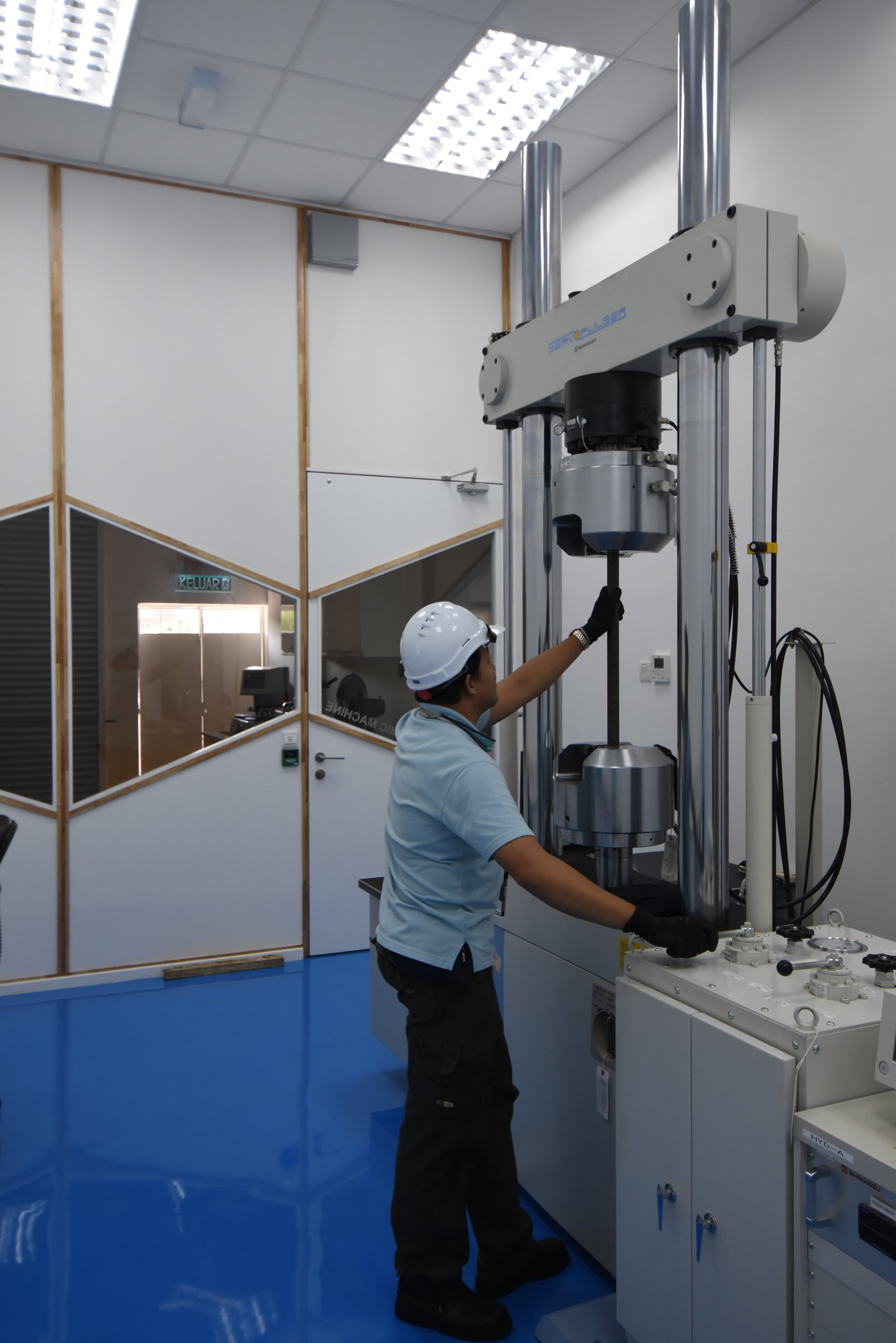

  • 2000 kN Universal Testing Machine

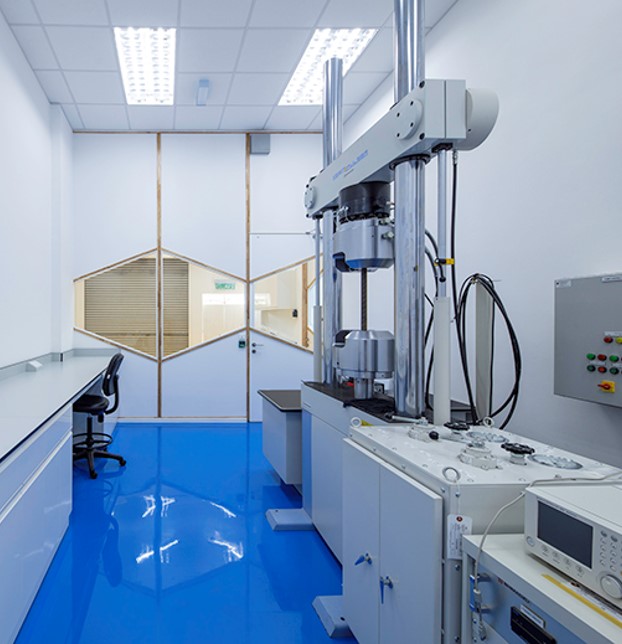

  • 200 kN Dynamic Testing Machine
  • 300 kN Dynamic Actuator
  • 500 – 2000 kN Static Actuator

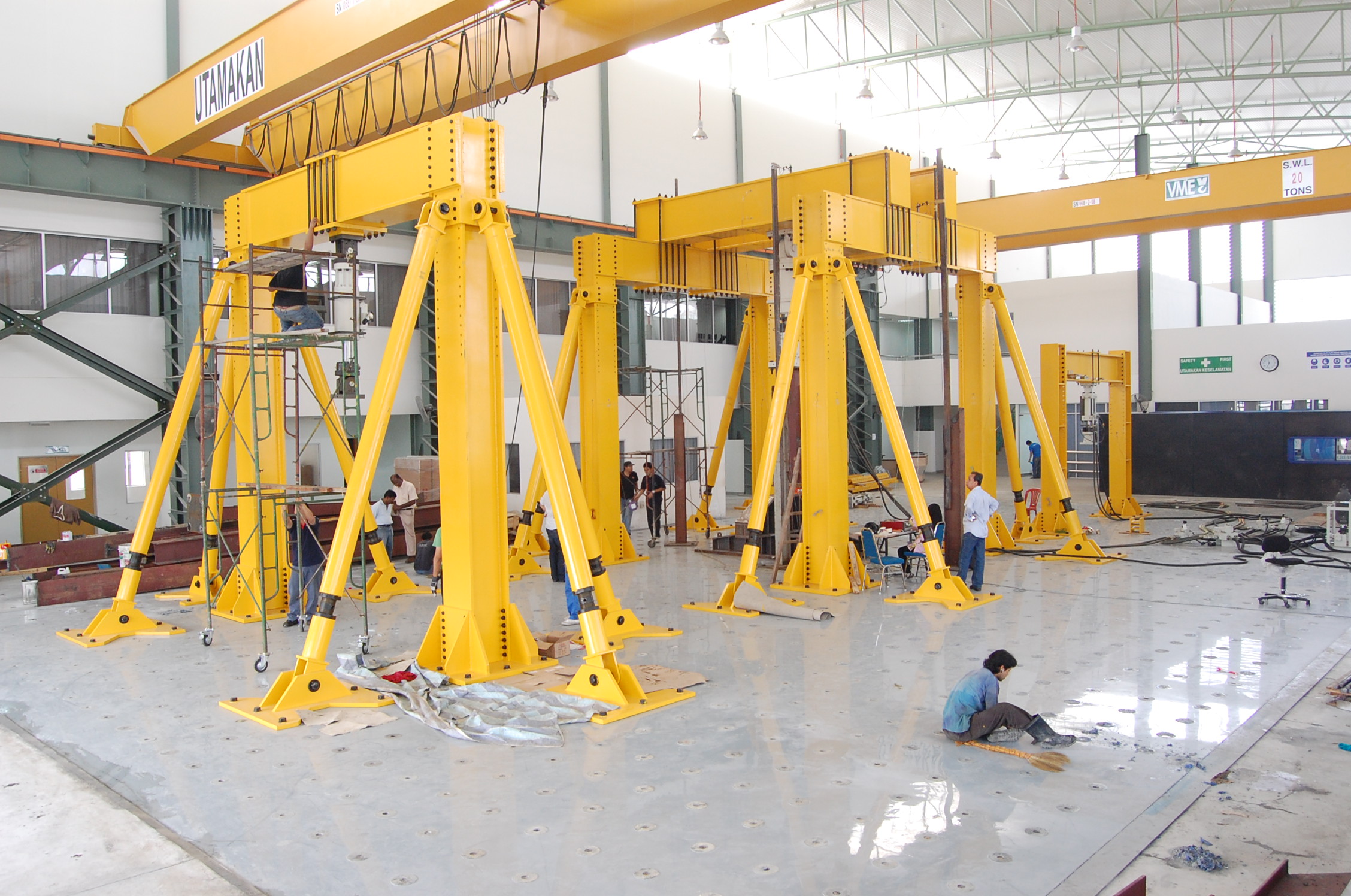

  • Single and Double Portal Frame

General Form :

MORE INFO

Type of Test
  • Fresh Concrete

    Slump test : BS EN 12350-2-2009

    Compacting factor : BS EN 12350-4-2009

    Cube preparation : BS EN 12390-2-2009

    Cylinder/beam preparation : BS EN 12350-1-2009

  • Scaffolding (A-Frame / Modular / Shoring)

    Tensile :
    MS1462-1, MS1462-2-1, MS 1462-4-1, MS 1462-3-1, MS EN 10210 / MS EN 10219

    Chemical :
    MS1462-2-1, MS EN 10210 / MS EN 10219

    Flattening :
    MS1462-2-1

    Dimensioning :
    MS1462-2-1, MS 1462-4-1, MS 1462-3-1

    Zinc coating thickness :
    ISO 2178/ISO 1461, BS EN ISO 9227, EN 10240 / EN 1461, EN ISO 2409 / ISO 253, MS 1462-4-2

    Coating adhesion :
    ISO 2409

    Coating mass (min. 2 samples):
    MS 2384, MS 2385, AS 1397

    Stairway (cyclic load) :
    MS 1462-3-2, MS 1462-4-1

    Test for Corrosion Resistance (Salt Spray) :
    MS ISO 9227

    Compressive Strength of Vertical / Horizontal Tube:
    MS1462-1

    Load Test on Scaffolding Component (Steel Prop,Bracket, Arms Lock, Wall Tie, Brace Pins) :
    MS1462-1, MS 1462-4-1

    Structure Test - Load Test (3 bay x 3 lift and 1 bay x 3 lift):
    MS1462-1, MS 1462-3-2

    Coupler test - Force (slipping/failure/pull apart), indentation, bending & rotational moment :
    MS1462-2-3

    Drop Test (Shear & Moment) :
    MS 1462-3-2

  • Coring of Concrete

    Concrete coring through reinforced concrete : BS EN 12504-1

    Core specimen density : BS EN 12390-3:2009

    Compressive strength of core sample (trimmed & capped) : BS EN 12504-1

    Compressive strength of core sample (without trimmed & capped) : BS EN 12504-1

  • Hardened Concrete / Brick / Block

    Cube compression test : BS EN 12390-3-2009

    Cylinder compression test : BS EN 12390-3-2009

    Beam flexural test : BS EN 12390-5

    Cylinder tensile splitting test : BS EN 12390-6

  • NDT (Concrete & Steel)

    Surface hardness (12 reading per set): BS 1881 - 202 : 1986/BS EN 12504-2:2012

    Rebound hammer: Analog / digital : BS 1881 - 202 : 1986/BS EN 12504-2:2012

  • Cement

    Compressive strength of cement mortar cube : BS EN 196-1:2016

    Chemical composition (XRF Method) : BS EN 196-1:2016

  • Full Scale Structure Test

    Flexural test on beam / pile / wall / hollow core / slab

    Compression test on wall panel l

    Shear test on beam / hollow core / slab

    Other IBS / Structural component test
